Price range: $12,999.99 through $25,999.99

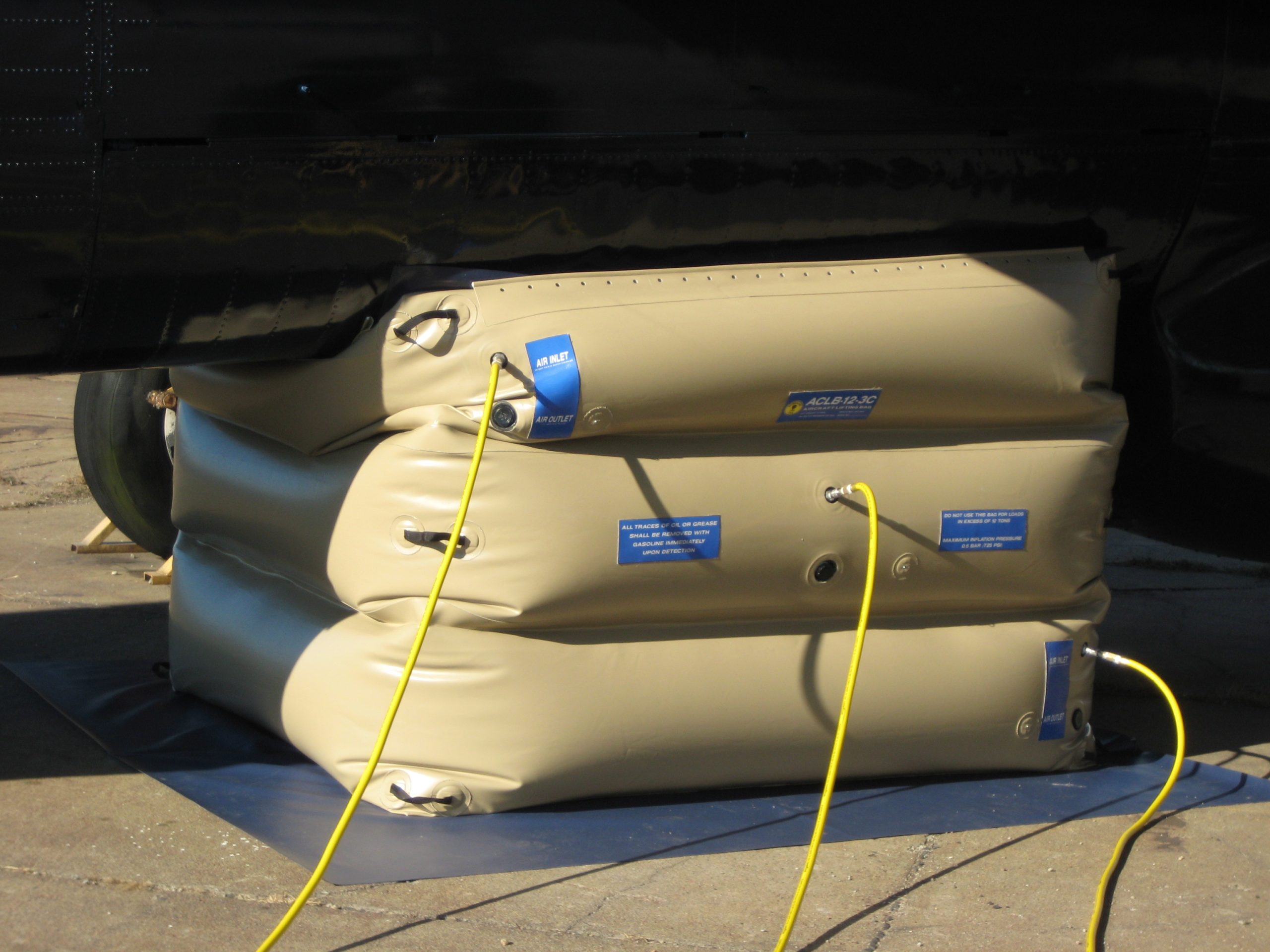

The Aircraft Lift Bag is used to lift crippled aircraft from runways or terrain where it is impractical or impossible to use standard aircraft jacks.
This item ships for free!
Subsalve USA is currently manufacturing these airlifting pneumatic bags for the U.S. Air Force, as well as many other foreign air forces throughout the world. (NSN # 173-00-263-2962)
Fabric:
Constructed of the same urethane-coated nylon as our underwater lift bags, these lift bags are highly resistant to extreme atmospheric temperature, abrasion and petrochemicals. Equipped with all necessary hardware – ready for immediate use, each Subsalve USA lift bag is tested prior to shipping.

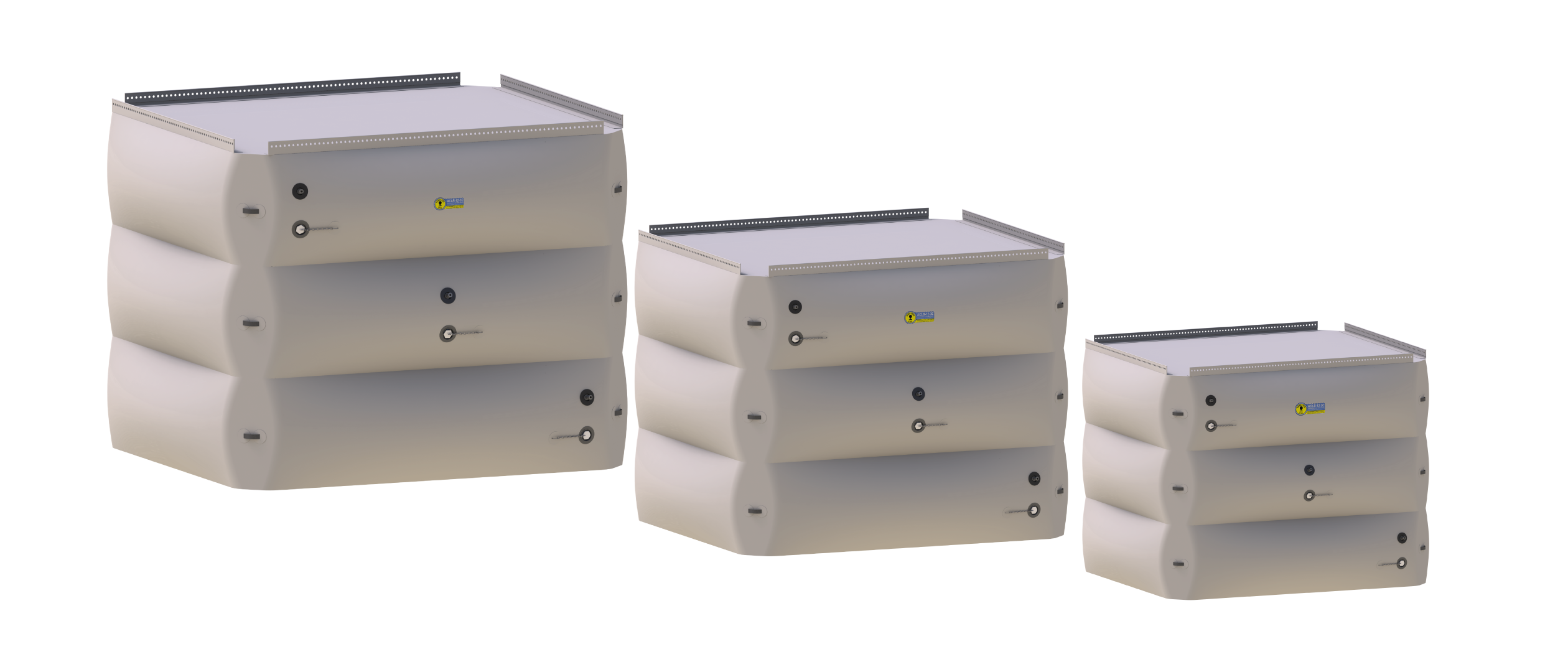

| Model | Lift Capacity | Packed Cubic Dimensions | Weight |
|---|---|---|---|
| Standard | |||
| ACLB-12-3C | 12 tonne | 90in x 78in x 72in | 185lb |
| ACLB-20-3C | 20 tonne | 130in x 112in x 104in | 400lb |
| ACLB-40-3C | 40 tonne | 165in x 142in x 132in | 600lb |
| Metric | |||
| ACLB-12-3C | 12,000kg | 2.29m x 1.98m x 1.83m | 84kg |
| ACLB-20-3C | 20,000kg | 3.30m x 2.86m x 2.65m | 181kg |
| ACLB-40-3C | 40,000kg | 4.19m x 3.61m x 3.36m | 272kg |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Lift-capacity | 12 ton, 20 ton, 40 ton |
