Description

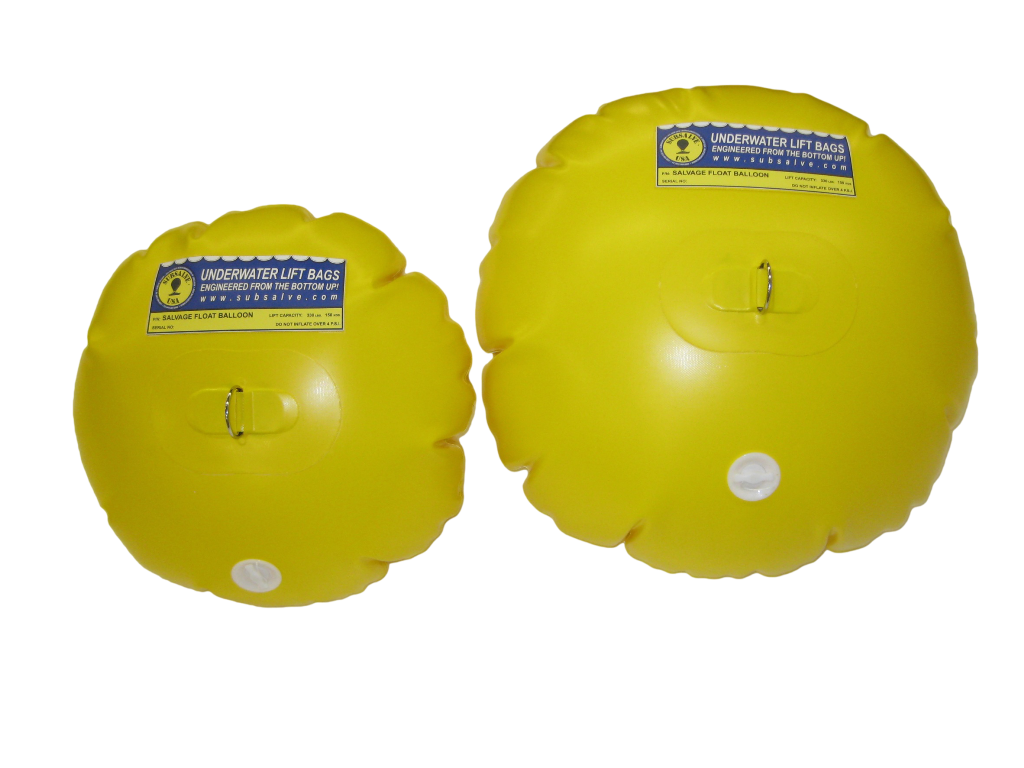

The Subsalve cable and pipeline floats provide benefits for the save and efficient installation of underwater cables and pipelines. Our Cable/Pipeline Float Salvage Float Balloons include three stainless steel lift rings and an inflation port. These floats are used for light salvage as well as cable flotation and suspension.

Fabric

Urethane-coated nylon—high-strength and heavy-duty
Superior abrasion resistance
Resistant to most petro-chemicals
UV-resistant
Low maintenance requirements and easy to clean
RF welded seams

NSN Information

Part No. SFB-300 is manufactured to US Military specification NSN 2050-00-574-7963 and in accordance with dwg. No. 4563094.

The Subsalve Promise

Each Subsalve USA lift bag is tested prior to shipping.

Custom sizes available.
All Subsalve USA products are compliant with IMCA D-016-AIRBAGS, ABS, U.S. Department of Defense Standards.

Product Specifications

Model	Lift Capacity	Inflated Diameter	Packaged Cubic Dimension	Weight
SFB Standard
SFB-100	110lb	22in	15in x 11in x 7in	6lb
SFB-200	220lb	27in	15in x 11in x 7in	8lb
SFB-300	330lb	30in	18in x 13in x 10in	10lb
SFB-500	550lb	34in	24in x 18in x 10in	12lb

SFB Metric
SFB-100	50kg	.56m	.38in x .28m x .18m	2.7kg
SFB-200	100kg	.69m	.38in x .28m x .18m	3.6kg
SFB-300	150kg	.76m	.46m x .33m x .25m	4.5kg
SFB-500	250kg	.86m	.61m x .46m x .25m	5.4kg

Additional information

Lift Capacity?	110 lbs. / 50 Kg, 220 lbs. / 100 Kg, 330 lbs. / 150 kg, 550 lbs. / 250 kg, Twin cable 500 lbs., Twin cable 1000 lbs.

Subsalve Cable and Pipeline floats
